P6 Outdoor 3 màu
P6 Outdoor 3 màu
- Model: P6 OUTDOOR SMD
- Hãng sãn xuất: Hoozoe

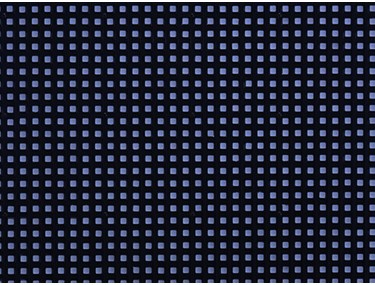

Module Led P6, ngoài trời, 3 màu, SMD, Kích thước 192x192 mm
Bảo hành: 1 năm
|
Item |
Parameter |
Unit |
|
Pixel Pitch |
6 |
mm |
|
Pixel Density |
27.777 |
dots/sqm |
|
Resolution of Module |
32×32 |
dots |
|
Module Size |
192×192 |
mm |
|
Led Package |
SMD 3535 |
|
|
Drive IC |
MBI 5020 |
|
|
Chip Brand of LEDs |
Epistar |
|
|
Module Weight |
0,36 |
kgs/pc |
|
Brightness (White Balance) |
6000~6500 |
nits(cd/sq.m) |
|
Red Wavelength |
620-625 |
nm |
|
Green Wavelength |
520-525 |
nm |
|
Blue Wavelength |
470-475 |
nm |
|
Scan Mode |
1/8Scan |
|
|
View Distance |
5~80 |
M |
|
Best View Distance |
8~27 |
M |
|
Viewing Angle-Horizontal |
140 |
deg. |
|
Viewing Angle-Vertical |
70 |
deg. |
|
Module Maximum Power |
28 |
W |
|
Max. Power Consumption |
850 |
W/sq.m |
|
Avg. Power Consumption |
400-500 |
W/sq.m |
|
Working Voltage |
40A 5V/80A 5V |
|
|
Power Supply |
AC 110/220V |
|
|
Waterproof Grade |
IP65 |
|
|
Refresh Rate |
＞600 |
Hz/S |
|
Frame Rate |
≥ 60 |
Hz/S |
|
Gray Scale |
4096 grades gray |
|
|
Display Color |
256*256*256 |
|
|
Display Function |
Text,news,advertising,flash,animation |
|
|
Input Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, COMPOSITION, etc. |
|
|
Luminance Degradation |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25℃. |
|
|
Defective Dot Rate |
＜0.0001 |
|
|
Life Span |
100.000 |
hours |
|
MTBF |
＞10,000 |
hours |
|
Storage Temperature |
45 |
℃ |
|
Working Temperature |
35 |
℃ |
|
Working Humidity |
10%-90%RH |
|
|
Control System |
Synchronization or Asynchronization |
|
|
Quality Certificate |
ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 |
|
|
Working Environment |
2 Years |
|
|
Other Fertures |
Outdoor |
