PH2.5 Indoor Full Color 160x160 mm
PH2.5 Indoor Full Color 160x160 mm
- Model: Indoor PH2.5 SMD 160x160
- Hãng sãn xuất: Shenzhen YLRLED

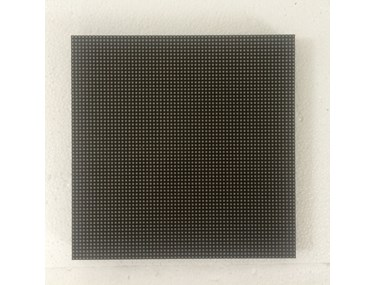

Module PH2.5 Full Color, Trong nhà, SMD 2121, Kích thước 160x160 mm
Giá: 251.000
| Item | Parameter |
| LED Type | SMD 2121 |
| Pixel Pitch | 2.5 mm |
| Panel Material | Die casting Aluminum |
| Scan Mode | 32s |
| Port Type | HUB75 |
| Module Dimensions | 160 x 160 mm |
| Resolution of module | 64 x 64 dots |
| Brightness | 2000 nits |
| Refresh Rate | 2500 Hz |
| Gray scale | 65536 bit |
| Contrast Ratio | 5000:1 |
| Color Temperature | 9500 K |
| Viewing Angle (H/V) | 160℃/120℃ |
| Driving Type | Constant Current |
| AC Operating Voltage | 200~240 Or 100~120 V |
| Power Consumption (Max./Avg.) | 720/550 W/m² |
| Storage Temperature | 40℃ ~60℃ |
| Operating Temperature | 20℃ ~50℃ |
| Storage Humidity | 10~90% |
| Operating Humidity | 10~90% |
| IP Rating (Front/Rear) | The Front IP50，The Back IP40 |
| LED Lifetime | 100000 hours |
