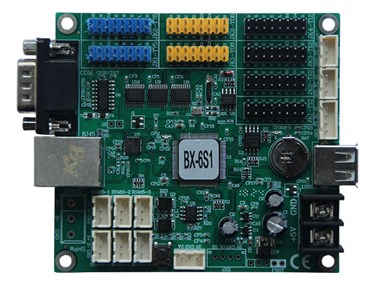

Card điều khiển BX-6S1

Card điều khiển BX-6S1

  • Model: BX-6S1
  • Hãng sãn xuất: ONBON

Card điều khiển BX-6S1:

- Giao tiếp: 100M network+RS232+USB on board

Giá: 487.000



Control size

Single color 32K:512*64、512*32、512*16、256*128

Dual color 32K:512*64、512*32、512*16、256*128

Tri color 32K : 512*64、512*32、512*16、256*128

Storage 2MByte
Software function group sending/multi-program edit/multi-area display/multi-lanuage version
Program quantity Support 128 programs
Area quantity Each program maximum support 16 areas
Area type Weather/Image&text//subtitle/animation /lunar/ time/dial/timer/sensor areas
Border Program shine border /Area shine border
Clock Lunar /Dial/ Chinese and English clock/timer (all support multi-groups)
Moving smoothness No cross lines when moving to the left, and will not shake when lower the moving speed.
the brightness will not be lower when move left in a long screen
Program stability Support adjusting moving speed; high refresh rate,  stable running on screen
Module Support all kinds of single/dual/tri  color modules
Column driving IC Support 74HC595,SM16188,common  constant current chip, double latch chip and other mainstream LED drive chip Not support all PWM chip
Row decoding IC Support 74HC138 row decoding/none decoding module,not support other row decoding IC,infuture will support
Scan mode Support smart scan,support any kinds of scan mode from static to 1/32
Module empty spot Support any empty spot
RGB signal Support RGB signaldefinition
Interface 2 nos T75+2 nos of T8+4 nos of T12
Communication 100M network+RS232+USB
Sensor interface IR  / brightness/temperaure/temp&humidity sensor/environmental detecting sensor socket on board
Remote Support select program/lock screen/brightness adjustment/power on & off/screen test
Sensor Support temperature/temp&huidity/brightness sensor and other sensor port which can be connected by RS485
Brightness adjust 16 grade brightness, support manual /timing/auto adjust mode
Remote switch Support auto timing switch,software/remote switch
Program group sending Support program self-adaption
Parameters fast match Support save and read-back the screen parameters
Any layout Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make vertical font
Working voltage 5V(3.5V~6V wide working voltage)
Max power ≤2W
Working temperature -40℃~80℃
Network communication Support LAN and internet
Program update Support USB ,support 100M network program sending
Display control Support timing display
Manage device PC,Android (IOS can’t support now)
Remote control Auto adjust brightness ,auto switch screen ,system parameters setup,program display control ,update program sending
Auto adjust brightness Support auto adjust the brightness according to different time or ambient brightness
Timing switch Setup by management system
